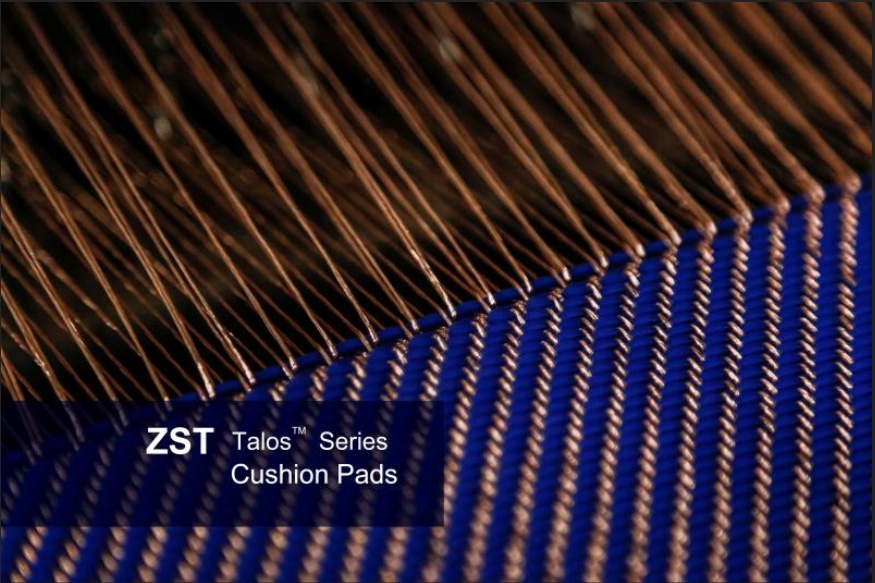

Cushion Pad for MDF/OSB Production Line
| Model | Unit | Talos-SC | Talos-SB | Talos-FC | Talos-FB | Talos-CC | Talos-CB |
| Material | Germany silicon+copper | Germany silicon+brass | Fiber+copper | Fiber+brass | Copper+copper | Copper+brass | |
| Type of weave | Plain weave/Twill weave | Plain weave/Twill weave | Twill weave | Twill weave | Twill weave | Twill weave | |
| Thickness | mm | 2-2.5 | 2-2.5 | 3-6 | 3-6 | 1.2-2.5 | 1.2-2.5 |
| Width | mm | ≤3300 | ≤3300 |
≤3300 |
≤3300 | ≤3300 | ≤3300 |
| Length | mm | unlimited | unlimited | unlimited | unlimited | unlimited | unlimited |
| Continuous thermal load
(Service temperature) |
℃ | ≤260 | ≤260 | ≤230 | ≤230 | ≤300 | ≤300 |
| Continuous pressure
(Service pressure) |
MPa | ≤35 | ≤35 | ≤35 | ≤35 | ≤35 | ≤35 |
| Weight | g/sqm |
3000-4500 |
5000-5500 |
20000-36000 |
|||
| Color | Blue | Blue | White | White | Yellow | Yellow | |
