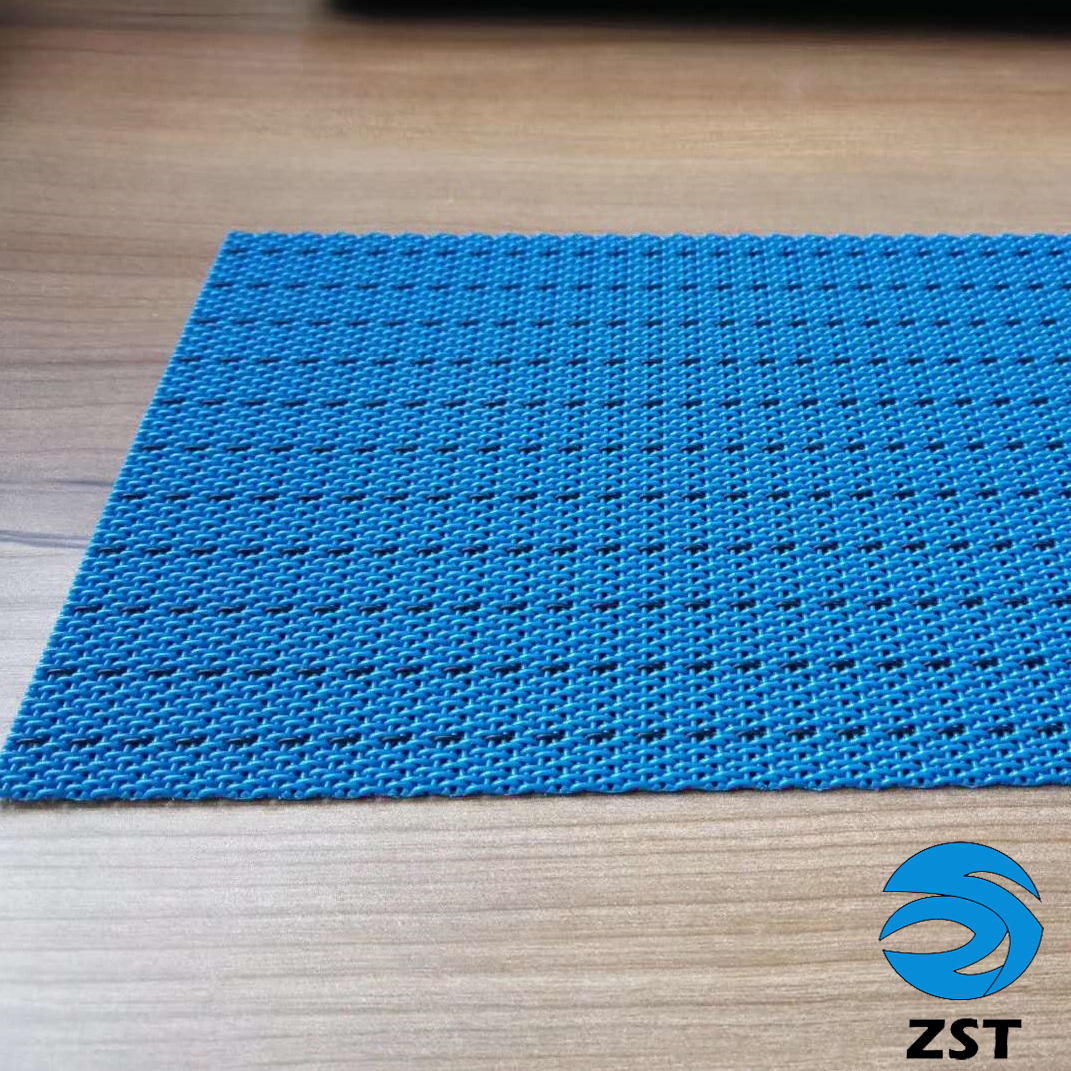

Extraline conveyor and processing belts/Prepress air belts
| Product Construction/Design | |
| Conveying Side(Material): | Polyester (PET) |
| Conveying Side(Surface): | fabric |
| Conveying Side(Color): | blue |
| Traction Layer(Material): | Polyester (PET) |
| Mumber of Fabrics: | 1 |
| Running Side/Pulley Side(Material): | Polyester (PET) |
| Running Side/Pulley Side(Surface): | Fabric |
| Running Side/Pulley Side(Color): | blue |
| Technical Data | |
| Thickness: | 1.8 mm |
| Mass of belt (belt weight): | 1.3 kg/m2 |
| Pulley diameter (minimum): | 80mm |
| Pulley diameter minimum with counter flection: | 80mm |
| Tensile force for 1% elongation(k1% static)per unit of width | 15 N/mm |
| Operating temperature admissible(continuous) | Min: -20℃ Max: 120℃ |
| Coefficient of friction on slider bed of pickled steel sheet: | 0.20[-] |
| Seamliss manufacturing width: | 7000mm |
| Air permeability | 6400m3/h.m2 |
