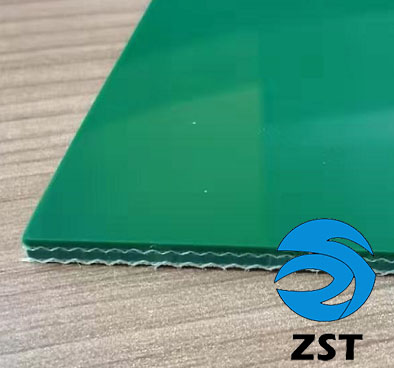

Extraline conveyor and processing belts/conveyor belts
| Technical Data | |
| Thickness: | 3.0 mm |
| Mass of belt (belt weight): | 3.3 kg/m2 |
| Pulley diameter (minimum): | 60mm |
| Pulley diameter minimum with counter flection: | 60mm |
| Tensile force for 1% elongation(k1% static)per unit of width | 8 N/mm |
| Operating temperature admissible(continuous) | Min： -15℃ Max： 80℃ |
| Coefficient of friction on slider bed of pickled steel sheet: | 0.20[-] |
| Seamliss manufacturing width: | 4000mm |
| Hardness topside | Shore 75 |
| Product Characteristics | |
| Slider bed suitable: | Yes |
| Carrying rollers suitable: | Yes |
| Power turns,curved installations: | No |
| Low noise applications: | No |
| Antistatically equipped: | No |
| Metal detector suitabel: | Yes |
| Flammability: | No specific falmmability prevention property |
